Product Introduction

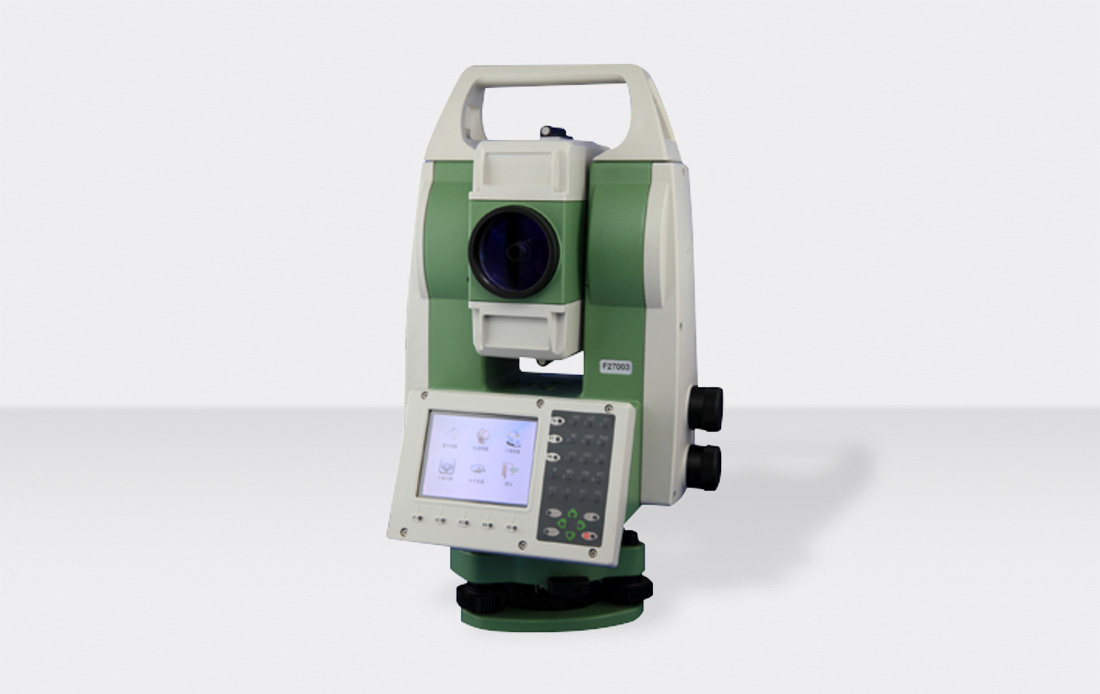

The measurement robot system introduced by Suzhou Yiguang, featuring ATR (Automatic Target Recognition) and other functions, brings the measurement work into the era of automation, providing measurement personnel with a more effective and convenient automated measurement solution. This instrument offers a higher cost-performance choice for tasks such as deformation monitoring and cross-sectional measurement.
Product Features
- ATR (Automatic Target Recognition) for automatic aiming, driven by a servo motor.
- High-performance CPU with a VGA color touch screen.
- New WINCE 7.0 operating system.
- PC-style graphical user interface, making it easy to get started.
- Rich functional modules to meet your surveying and mapping needs.
- Measurement guides to help you easily complete various applications.
Specifications
| Telescope | |||||
| Field of View: | 1°30' | Minimum Distance: | 1.0m | Image Orientation: | Upright |
| Magnification: | 30X | Resolution: | 3" | ||
| Angle Measurement | |||||
| Angular Measurement Accuracy: | 1"/0.5" | Measurement Method: | Absolute Encoding | Detection Method: | Diameter |
| Minimum Display: | 0.1" | ||||
| Distance Measurement | |||
| Prismless Accuracy: | 2mm + 2x10-6·D | Prismless Range: | 1000m |
| Reflector Accuracy: | 2mm + 2x10-6·D | Reflector Range: | 1200m |
| Prism Accuracy: | 1mm + 1x10-6·D
| Prism Range: | 6000m |
| Measurement Time: | <0.7s | ||
| Compensator | |||
| Compensation Type: | Dual-axis | Compensation Range: | ≥±6′ |
| Level Vials | |||
| Tube Level Vial: | 30"/2mm | Circular Level Vial: | 8′ /2mm |
| Laser Plumb Bob | |||||
| Laser Tube Type: | 635nm | Accuracy: | ±1mm/1.5m | Spot Size: | ≤2.5mm/0.5~2m |
| ATR | |||||
| Operating Range: | 5~1000m | Positioning Accuracy: | ±1mm@100m | Positioning Time: | 3~4S |
| Infinite Fine Adjustment Screws: | 1 horizontal, 1 vertical | ||||
| Motor Drive | |||||
| Servo Positioning Accuracy (Standard Deviation): | 3′ | Maximum Rotation Speed: | 90°/s | Minimum Slow Micro-rotation Control: | 1″ |
| Other Features | |
| Display Type: | Dual-sided transflective 3.5-inch 320x240 touch screen |
| Keys: | Backlit + automatic light sensing |
| Battery Specifications: | 7.4V 5.8Ah lithium battery |
| Battery Life: | 5~8 hours |
| Data Interface/Communication: | Supports USB drive, RS232C, USB, Bluetooth |
| External Storage: | Up to 64GB supported |
| Operating System: | WIN CE 7.0 |
| Dust and Water Resistance Rating: | IP65 (IEC 60529) |
| Operating Temperature Range: | -20℃~+50℃ |
| Storage Temperature Range: | -40℃~+60℃ |
